SPECIFICATION

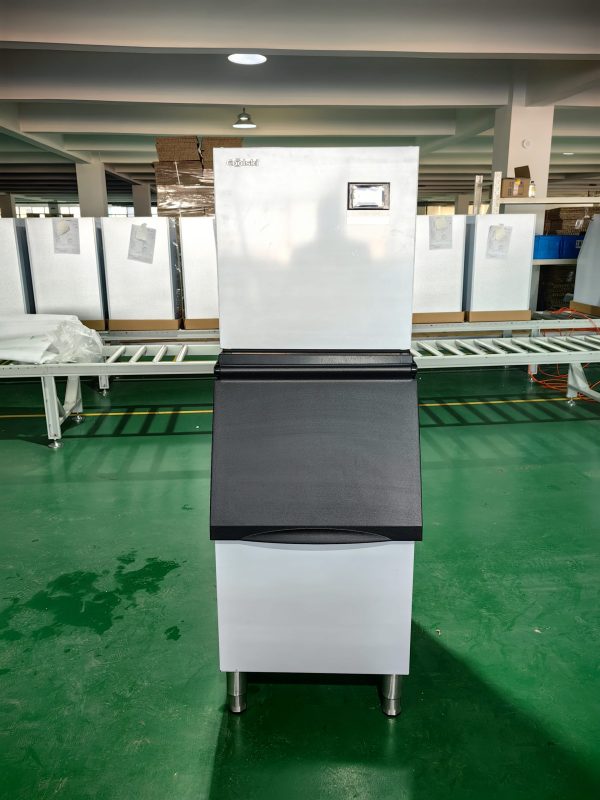

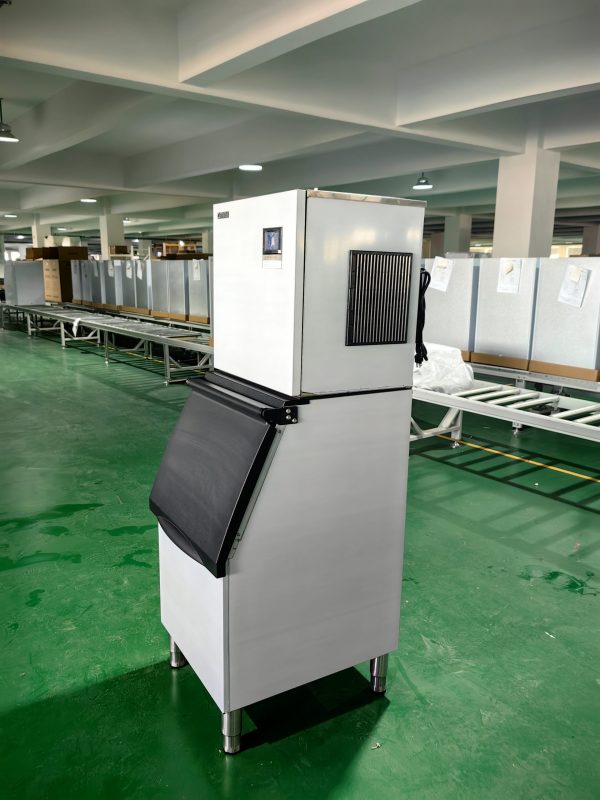

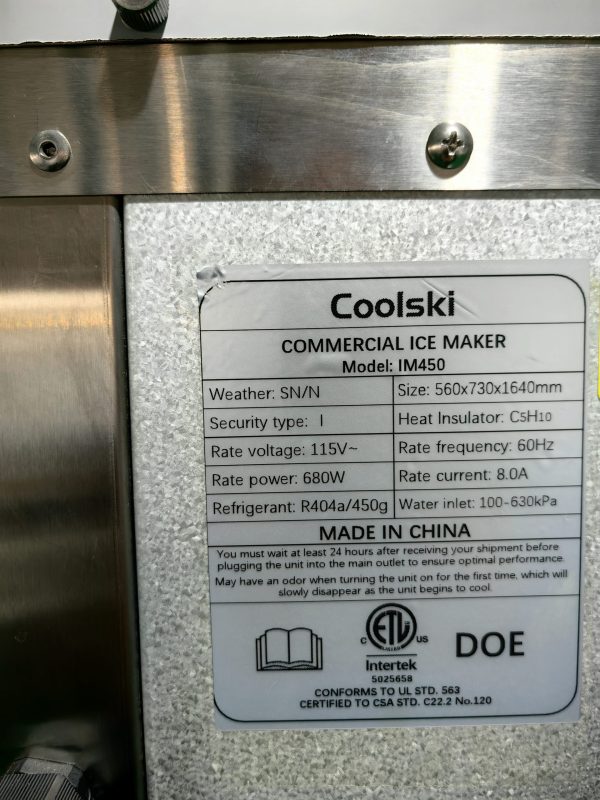

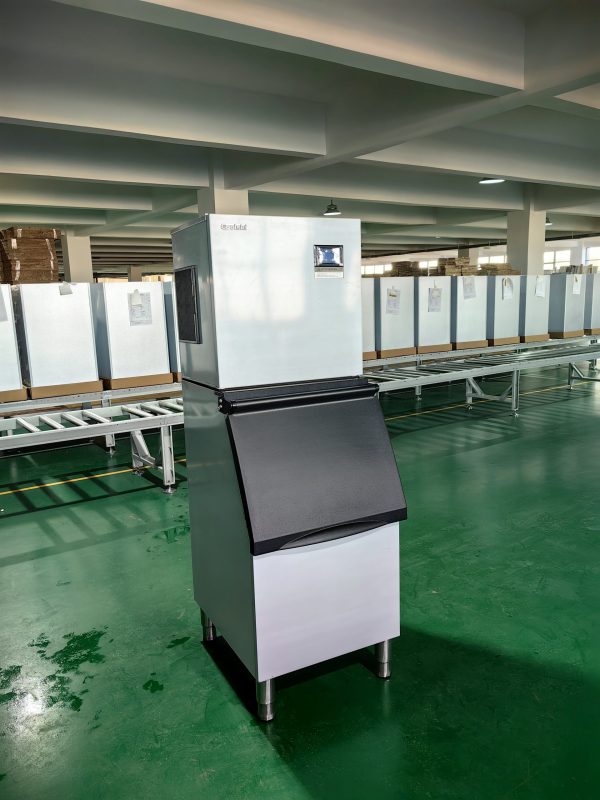

ICE MAKER MODEL NO. IM450
1 电流 Amp. 6.8A
2 电压 Voltage 115V/60Hz
3 插头类型 NEMA PLUG The U.S.A Plug
4 电源线长度 Cord Lenght 1.8m
5 DOE工况产冰量 DOE Ice Output Capacity
lbs/24hrs		 119KG/24h
6 标准产冰量 Standard Ice output
lbs/24hrs		 158KG/24h
7 使用的环境温度范围 Ambient Temp. 10℃-38℃
（实际测试5℃-43℃）
8 气候类型 Climate Class ST~T
9 压缩机品牌 Compressor Brand 海立 HIGHLY
10 制冷剂 Refrigerants R404a
11 冷凝方式 Cooling System 风冷 Air Cooling
12 能耗 Energy Consumption (kWh/24H) 14.89（DOE工况）
13 能耗 Energy Consumption (kWh/year) 5434（DOE工况）
14 储冰桶储冰量(kg) Ice Bin Capacity 108
15 产品外尺寸 不含脚 Head Size
not include feet(mm)		 584*709*1489
16 产品外尺寸 含脚  Head Size
includes feet (mm)		 584*709*1650
17 主机尺寸 Head Dimension(mm) 564（584）*445*562
18 储冰桶尺寸 不含脚 Bin Size
not includes feet(mm)		 584*709*927
19 储冰桶尺寸 含脚 Bin Size
includes feet(mm)		 584*709*1088
20 主机包装尺寸 Head Packing dimension(mm) 538*670*748
21 储冰桶包装尺寸 Bin Packing dimension(mm) 615*705*988
22 主机净重(kg) HEAD NET WEIGHT 36.6
23 主机毛重(kg) HEAD GROSS WEIGHT 51.3
24 储冰桶净重(kg) BIN NET WEIGHT 26.4kg
25 储冰桶毛重(kg) BIN GROSS WEIGHT 36.9kg
26 认证 CERTIFICATE DOE/CEC,ETL SAFETY

Application Scenarios



Ice makers are widely used in various occasions to meet the ice needs of families, businesses and other scenes.

Unique Feature:



  1. Advanced LCD touchscreen control panel. The series has different control panels. DB series are simpler to operate.
  2. Body main material: Food-grade PE liner with whole foaming technology. ABS insulation plastic and Food-grade stainless steel.
  3. Industry-leading high-performance copper-nickel evaporator, shorter ice freeze and harvest cycle.
  4. Water-flow ice-making system which makes the capacity 10% higher than other similar machines.
  5. Using advanced noise reduction technology to make working noise reduce more than 15%.

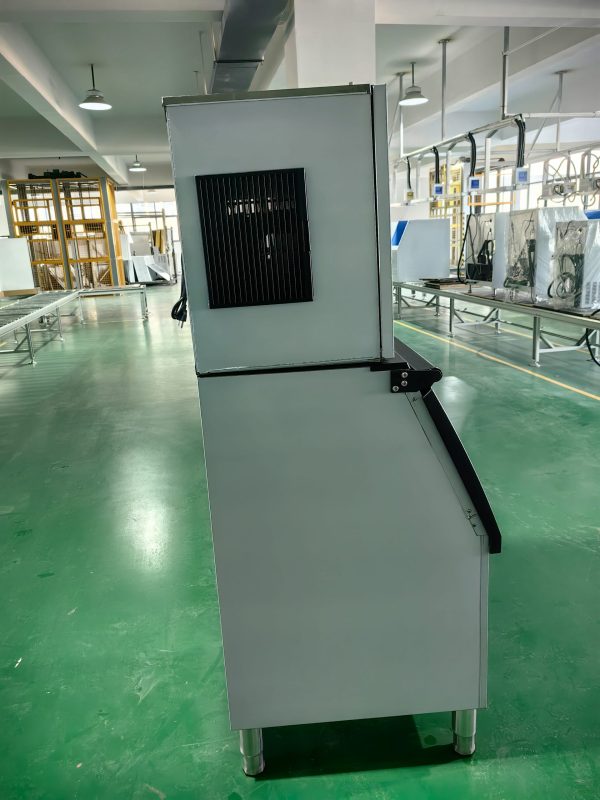

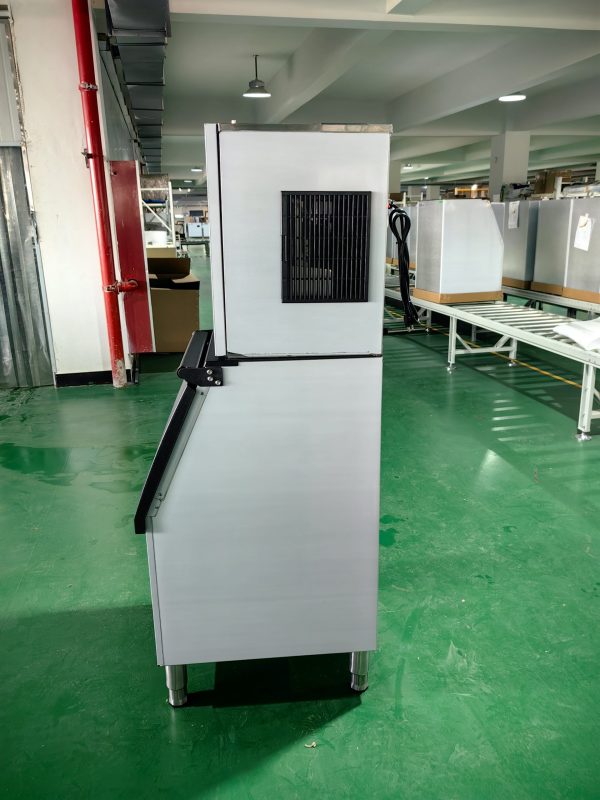

  6. Front air intake and exhaust side for hot air spread, good heat radiation effect, enhance the life time of the machine. Removable anti-dust mesh is easily cleaned.
  7. Small model machine has space-saving designs; Big model machines are higher than other similar machines.
